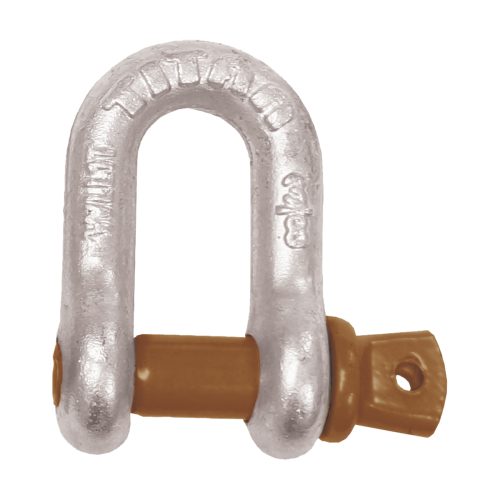

Built tough for the harshest conditions, these Heavy Duty Galvanised D Shackles are tested and manufactured to American Standard RR-C-271 Type IV Grade A with a 6:1 safety factor.
Hot-dipped galvanising on both the body and pin provides superior corrosion resistance and longevity, making them ideal for marine, industrial, and heavy outdoor applications. Each shackle features a large tie-off hole for pin security, is stamped with working load limits, and proof tested to ensure strength and reliability.
Available in 8mm and 10mm sizes, these shackles are designed to perform when safety and durability matter most.
| BLA Code | Bail Size (mm) | Pin Dia. (mm) | Working Load (kg) | Breaking Load (kg) | D1 (mm) | E Thread (mm) | W (mm) | W1 (mm) | L (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 143024 | 8 | 10 | 750 | 4500 | 5.6 | 3/8 16UNC | 13.5 | 29.5 | 42.2 |
| 143026 | 10 | 11 | 1000 | 6000 | 6.4 | 7/16 14UNC | 16.8 | 35.8 | 51.6 |
